Protocols

This section provides SEDA protocols with step-by-step execution guides.

Preparing datasets for large scale phylogenetic analyses

This protocol shows how to retrieve and process a large amount of coding sequences of a given gene. The portrayed example concerns GULO, a gene that encodes for the protein that catalyzes the final oxidation step of the Vitamin C biosynthetic pathway in animals (http://doi.org/10.7554/eLife.06369).

Step 1: Download input data

The input data for this protocol can be obtained at https://www.ncbi.nlm.nih.gov/assembly/, by querying Animals on the search field, selecting Download Assemblies, and choosing the CDS from genomic FASTA (.fna) file type for both RefSeq and GenBank source databases. Please note that to obtain the maximum amount of information it is recommended to use both databases, since the data for each species does not completely overlap between them.

The download options are represented in the image below.

The parameter configuration files to configure the SEDA operations are available here: https://www.sing-group.org/seda/downloads/data/protocol-large-scale-phylogenetic-analysis.zip

Step 2: Checking for genome contaminants

After downloading the data and extracting all the FASTA files for both databases, click the Edit selection button of the SEDA GUI to load the input FASTA files. Due to the high number of files (544 for RefSeq and 671 for GenBank, obtained at 27/07/2020), less capable hardware can strugle to perform large scale operations using the available RAM. In these cases, the datasets can either be processed in adequate batches (e.g. 30 files at a time) or by switching to in-disk processing (which can be a very time consuming alternative).

Note

Note that the RefSeq and GenBank datasets must be processed separately in the initial protocol steps (up to step 6, they are merged in step 7), due to distinct file characteristics.

Next, select the NCBI Rename operation. To perform the operation, the File Name should have the Prefix position selected, as well as _ as Delimiter. The Sequence Headers should have the None position option selected. As for Configuration, the Replace blank spaces and Replace special characters fields should be checked, and _ selected as Replacement. The NCBI Taxonomy information parameter should have the Delimiter defined as _ and Kingdom as the selected field.

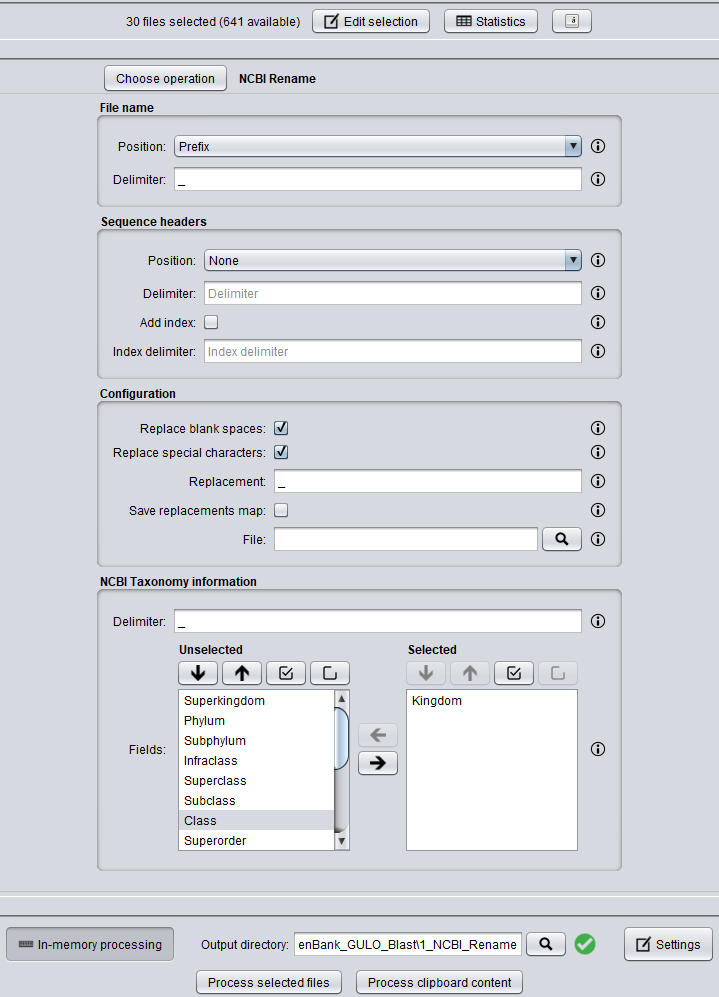

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/GenBank_RefSeq_Rename_header_1 file.

Once the operation is configured, choose an appropriate output directory for the files of both databases (e.g. output/GenBank/1_NCBI_Rename) and run the operation. When finished, check the output folder for genomes that do not contain the Metazoa tag. In this case, two (GCF_001297725.1 and GCF_002188315.1) and one (GCA_002188315.1) E. coli genomes were removed from the RefSeq and GenBank datasets, respectively. After this verification, clear the current file selection and load the filtered output files.

Step 3: tblastn analysis

This step will be performed using the BLAST operation. In this example, the operation had a System binary execution mode selected. For this mode, it is necessary to have the BLAST binary files available in the computer, and as such the compatible operating system files (e.g. ncbi-blast-2.10.1+-x64-win64.tar.gz for Windows) should be previously downloaded from ftp://ftp.ncbi.nlm.nih.gov/blast/executables/blast+/LATEST/.

Note

Alternatively, BLAST can be executed using the Docker image execution mode. For this, only Docker must be installed in the computer where SEDA is running.

After extracting the content of the tar.gz file, the bin folder will be available for selection within the SEDA GUI at the BLAST executables directory field. The DB Configuration section can be left unaltered, and the Query configuration should have the Each database separately option selected, as well as tblastn as BLAST type. The external query file is the Mus musculus GULO protein (NP_848862.1), obtained in FASTA format from https://www.ncbi.nlm.nih.gov/protein/NP_848862.1?report=fasta. The remaining parameters are not altered in this protocol.

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/BLAST file (in this case, the BLAST executables directory and External file query paths must be adjusted).

Once the operation is configured, choose an appropriate output directory for the files of both databases (e.g. output/GenBank/2_Blast_Results) and run the operation. When finished, clear the current file selection and load the output files.

Step 4: Add taxonomic information to sequence headers

Adding taxonomic information to sequence headers can be very usefull when analysing phylogenetic data. The NCBI Rename operation will again be required to achieve this purpose. Keep in mind that although this operation could be perfomed at the begining of the protocol, it is less time consuming when used after the tblastn operation, since many of the sequences were filtered and the output files are remarkably smaller and easier to process. As such, this step likely will not require the use of batches even when using less capable hardware. Furthermore, the selection of Each database separately for the previous BLAST operation is essencial, since the NCBI rename depends on the GCF or GCA numbers that would be lost by merging the individual outputs into a single file. To perform the operation, the File Name should have the Override position selected, as well as _ as Delimiter. The Sequence Headers should have the Prefix position option selected and a _ as Delimiter. As for Configuration, the Replace blank spaces and Replace special characters fields should be checked, and _ selected as Replacement. Finally, the NCBI Taxonomy information parameter should have the Delimiter defined as _ and Class and Family (in that order) as the selected fields.

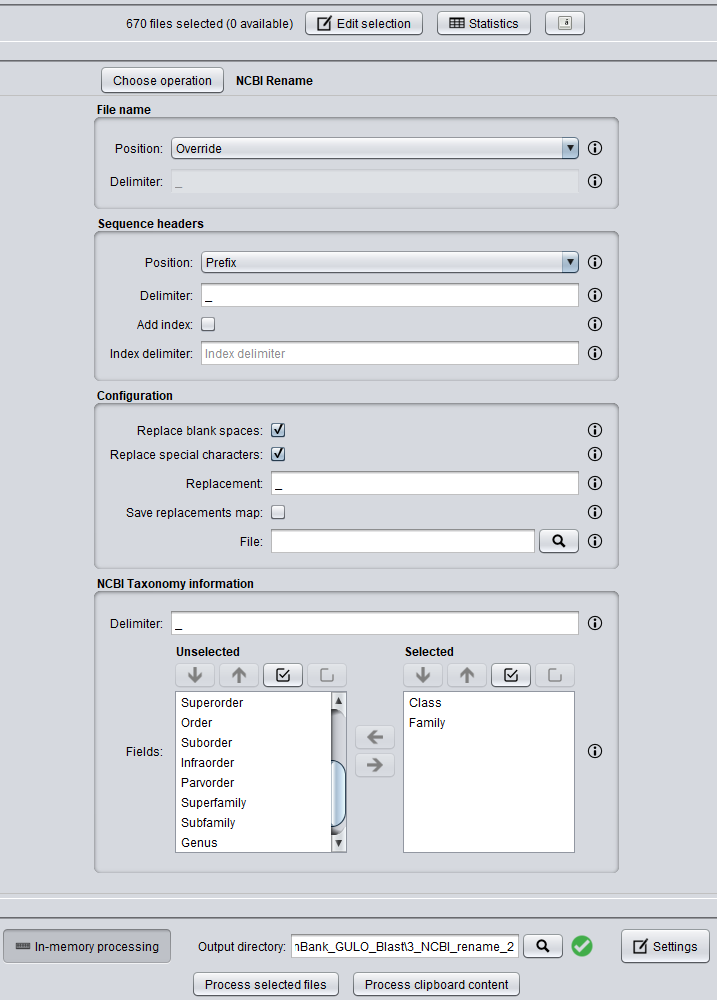

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/NCBI_Rename_2 file.

Once the operation is configured, choose an appropriate output directory for the files of both databases (e.g. output/GenBank/3_NCBI_Rename_2) and run the operation. When finished, clear the current file selection and load the output files.

Step 5: Merging the files for each database

The output of the second NCBI Rename operation can be merged into a single file for each database (RefSeq and GenBank) to allow for the easy manipulation of the subsequent dataset outputs obtained. Using the Merge operation, select an appropriate name for the merged file in the Name field (e.g. GenBank_GULO), as well as the Remove line breaks option.

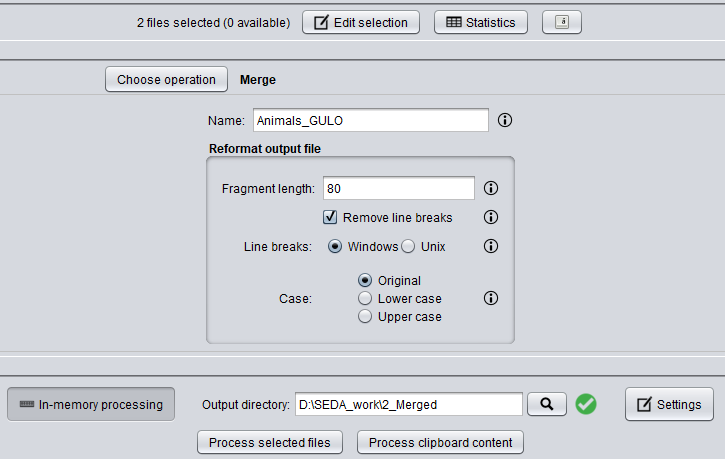

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/All_Merge file.

Once the operation is configured, choose an appropriate output directory for the files of both databases (e.g. output/GenBank/4_Merged) and run the operation. When finished, clear the current file selection and load the output files.

Step 6: Reformatting sequence headers

The unnecessary fields present in the sequence headers (which originate very long names), need to be reformatted in order to have an efficient and clean dataset for further analyses. Due to distinct characteristics of the RefSeq and GenBank sequence headers, their processing needs to be independent, thus avoiding the removal of crucial information. In this example, the sequence header reformatting will have three steps: the first and the third common between the RefSeq and GenBank files, and the second specific for each dataset.

6.1 First Rename header

Choosing the Rename header operation, select the Rename type as Replace interval, and place in the From and To fields the [ and ] characters, respectively. This can be applied to RefSeq and GenBank sequence headers.

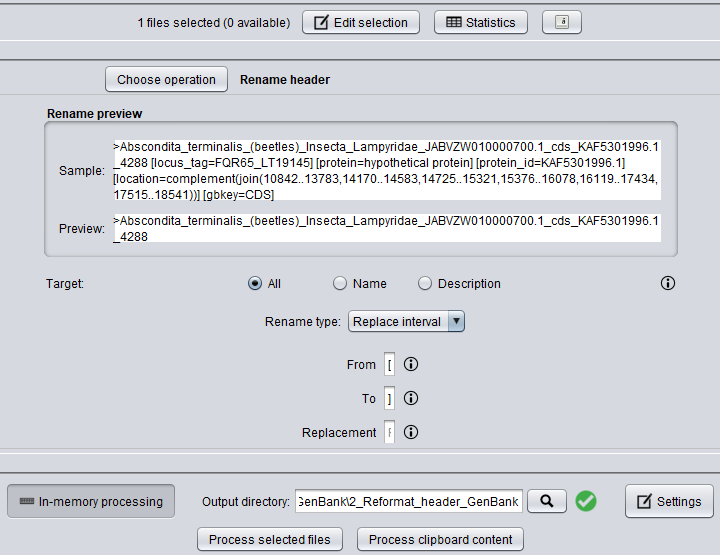

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/GenBank_RefSeq_Rename_header_1 file.

Once the operation is configured, choose an appropriate output directory for the files of both databases (e.g. output/GenBank/5_Reformat_header) and run the operation. When finished, clear the current file selection and load the output files.

6.2 Second Rename header

For the GenBank dataset, switch Rename type from Replace interval to Replace word, and check the Regex option. After, insert as Element the pattern ‘ae_\w+.[1-9]_cds’ and ‘ae’ as replacement.

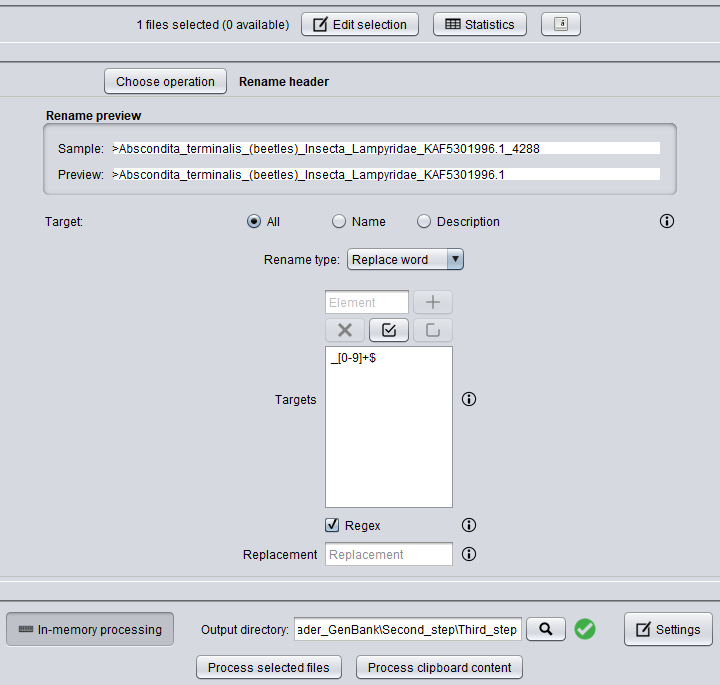

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/GenBank_Rename_header_2 file.

Once the operation is configured, choose an appropriate output directory (e.g. output/GenBank/5_Reformat_header/Second_step) and run the operation. When finished, clear the current file selection and load the output file.

For the RefSeq dataset, keep the Rename type as Replace interval, and place in the From and To fields the _N and _cds characters, respectively.

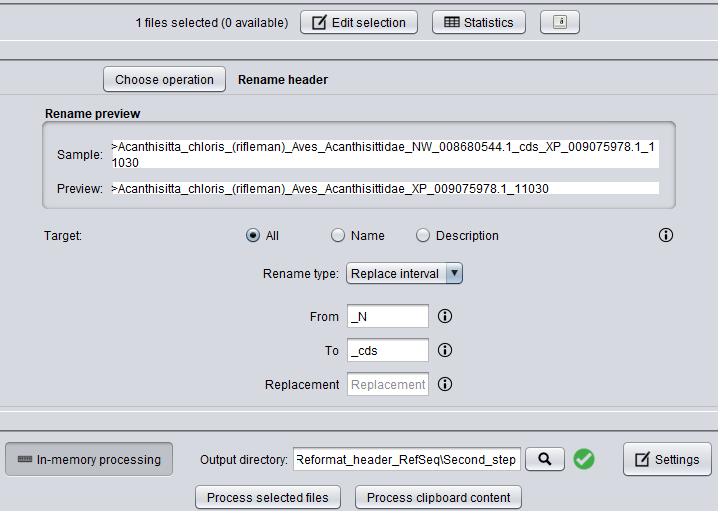

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/RefSeq_Rename_header_2 file.

Once the operation is configured, choose an appropriate output directory (e.g. output/RefSeq/5_Reformat_header/Second_step) and run the operation. When finished, clear the current file selection and load the output file.

6.3 Third Rename header

This step can be applied to RefSeq and GenBank sequence headers. Using the Replace word rename type, and checking the Regex option, insert as Element the pattern ‘_[0-9]+$’.

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/GenBank_RefSeq_Rename_Header_3 file.

Once the operation is configured, choose an appropriate output directory (e.g. output/GenBank/5_Reformat_header/Third_step) and run the operation. When finished, clear the current file selection and load the output files.

Step 7: Merging GenBank and RefSeq files

Since the GenBank and RefSeq files are now reformated to have a compatible sequence header format with all the relevant information, they can be merged to a single file to facilitate the subsequent protocol. Using the Merge operation, select an appropriate name for the merged file in the Name field (e.g. Animals_GULO), as well as the Remove line breaks option.

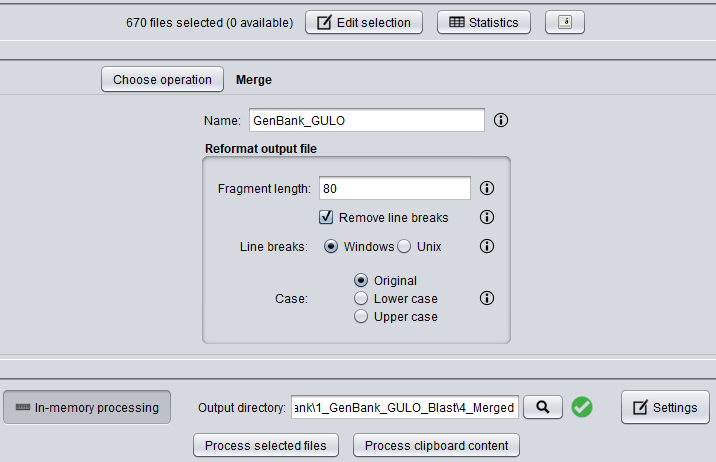

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/All_Merge file.

Once the operation is configured, choose an appropriate output directory (e.g. output/6_GULO_Merged) and run the operation. When finished, clear the current file selection and load the output file.

Step 8: Remove sequences with ambiguous nucleotides

Sequences with ambiguous nucleotides do not allow for a correct DNA to protein sequence translation, and as such, should be removed from the dataset. To achieve this, select the Pattern filtering operation, choose the Not contains option on the Patterns group menu, and use the pattern ‘[NVHDBMKWSYR]’ as query.

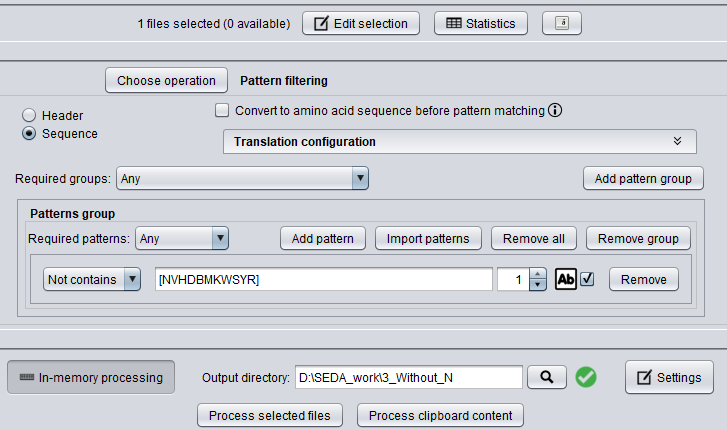

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/Pattern_Filtering_1 file.

Once the operation is configured, choose an appropriate output directory (e.g. output/7_Without_N) and run the operation. When finished, clear the current file selection and load the output file.

Step 9: Search for the typical GULO Pattern

GULO belongs to the vanillyl-alcohol oxidase (VAO) flavoproteins family, and as such, it is known to share a conserved HWXK amino acid motif with the remaining members (http://doi.org/10.1016/j.plaphy.2015.11.017). This evidence allows the restriction of the dataset to sequences that contain this translated motif, improving the quality of future molecular evolution analysis regarding the gene of interest.

To apply this filter, still in the Pattern filtering operation, check the Convert to amino acid sequence before pattern matching option on the Patterns group menu, choosing as configuration Starting at fixed frame 1. Then, select the Contains option and insert the pattern ‘HW.{1}K’ as query.

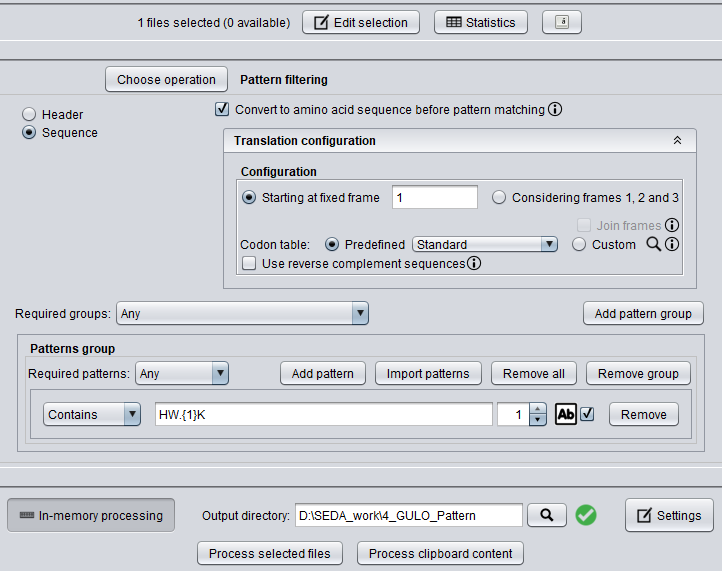

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/Pattern_Filtering_2 file.

Once the operation is configured, choose an appropriate output directory (e.g. output/8_GULO_Pattern) and run the operation. When finished, clear the current file selection and load the output file.

Step 10: Remove redundant sequences

To gather the maximum information possible, the use of the GenBank and RefSeq datasets was essential. Nevertheless, the use of both databases also implies the presence of many redundant sequences in the merged dataset. To avoid this issue, it is necessary to remove the redundant sequence representatives.

To achieve this, select the Remove redundant sequences operation, check the Remove also subsequences and Save merged headers into a file options and select an appropriate Merge list directory (e.g. output/9_No_Duplicates/Merge_list). This list may be important when, for example, there is a need to verify which sequences were removed and if they belong to distinct species by chance.

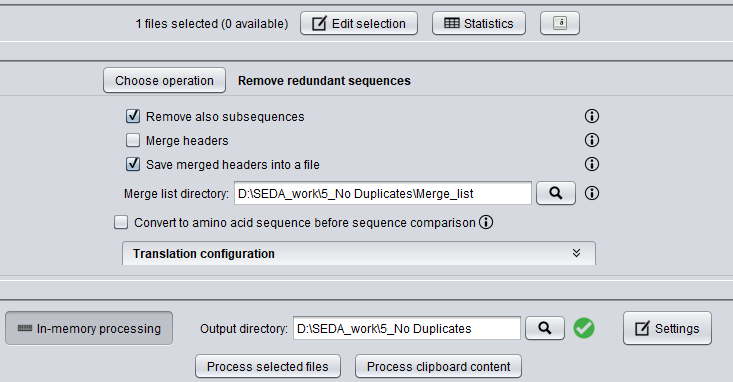

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/Remove_Redundant_sequences file.

Once the operation is configured, choose an appropriate output directory (e.g. output/9_No_Duplicates) and run the operation. When finished, clear the current file selection and load the output file.

Step 11: Sequence filtering

Although the sequences used in this protocol are tagged as coding in the download interface, it is not uncommon to find some without a valid start codon (ATG), with in-frame stop codons, or non-multiple of three. These sequences are likely derived from errors in annotation and should not be considered in further analyses.

To remove these sequences, select the Filtering operation and check ATG as the only valid start codon, as well as the Remove sequences with a non-multiple of three length and Remove sequences with in-frame stop codons options.

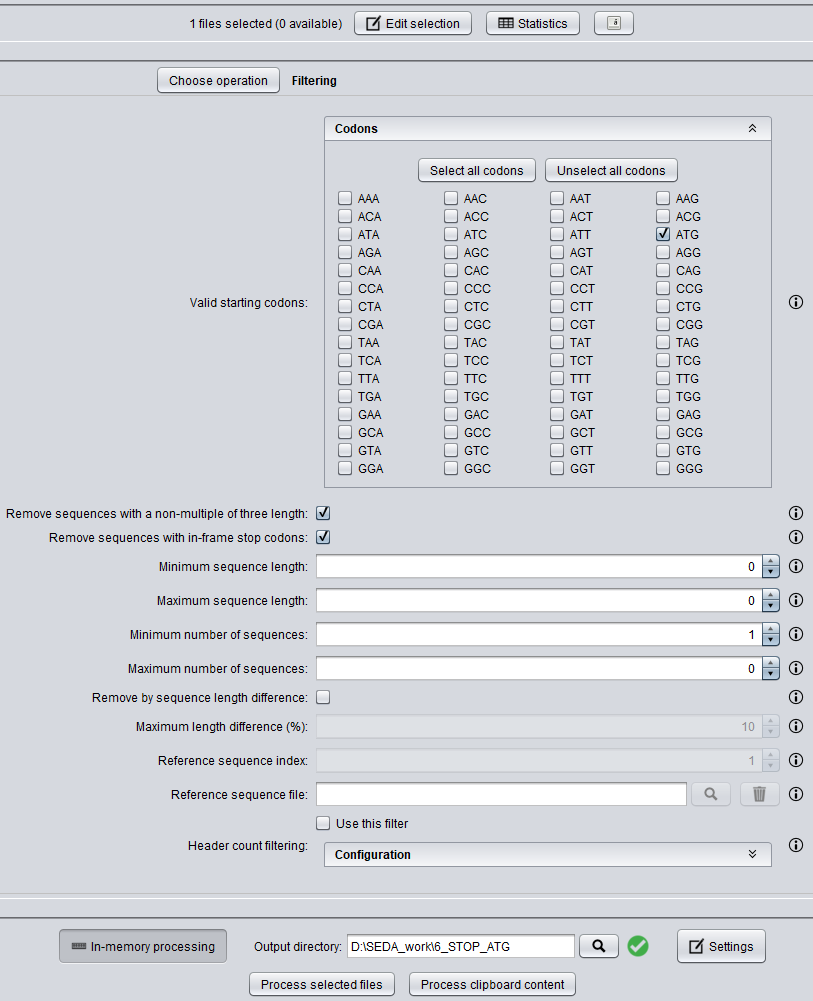

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/Filtering_1 file.

Once the operation is configured, choose an appropriate output directory (e.g. output/10_ATG_NO_STOP) and run the operation. When finished, clear the current file selection and load the output file.

Step 12: Reallocate reference sequence and size difference filtering

Sequences with a remarkable size difference relative to a given reference are sometimes derived from errors in annotation at intron/exon borders, and as such should be removed from further analyses. These sequences can be removed using two complementary operations in succession.

First, select the Reallocate reference sequences operation, and choose Header as the target. Given that the Rattus norvegicus sequence (EDL85374.1) has the same reference size as the Mus musculus sequence used as query in the BLAST operation, insert ‘Rattus_norvegicus’ as the query pattern.

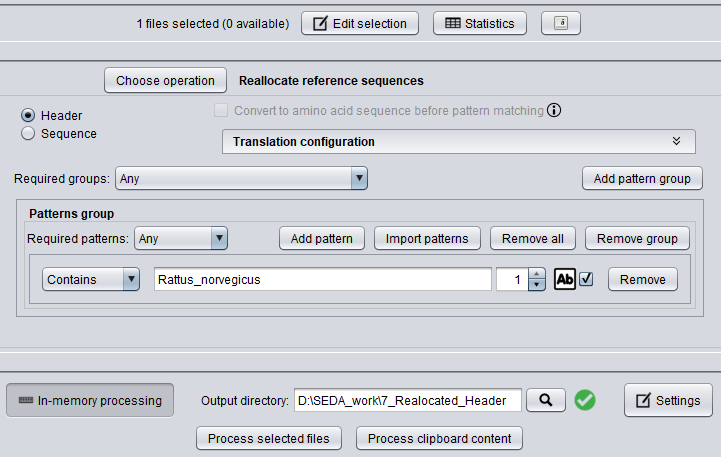

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/Reallocate_Reference_Sequence file.

Once the operation is configured, choose an appropriate output directory (e.g. output/11_Realocated_Header) and run the operation. When finished, clear the current file selection and load the output file.

After, process the Reallocate reference sequences output using the Filtering operation, checking the Remove by sequence length difference and allowing for a Maximum length difference (%) of 10% relative to the Reference sequence index 1 (Rattus norvegicus EDL85374.1).

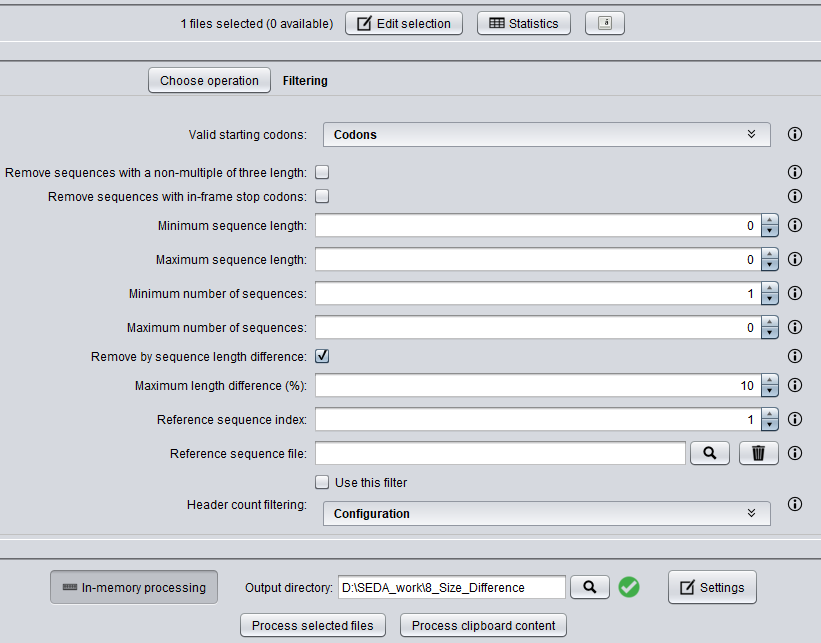

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/Filtering_2 file.

Once the operation is configured, choose an appropriate output directory (e.g. output/12_Size_Difference) and run the operation. When finished, clear the current file selection and load the output file.

Step 13: Remove isoforms

Finally, to avoid the phylogenetic analysis of sequences that provide redundant information, it is important to remove any isoforms that may have resisted the various processing steps.

This refinement can be performed using the Remove isoforms operation. As parameters, keep the standard 250 Minimum word length, insert 440 as the reference size with Longest selected as tie break. Additionally, use ^[^_]*_[^_]* as string to match and Name as the header target. This configuration will consider only the sequences that share the first two header fields (species name) as possible isoform candidates. As for the Removed isoforms menu, select Name as the header target and choose an adequate Isoform files directory (e.g. output/13_Remove_isoforms/Isoform_list). Similarly to the redundant sequence list mentioned above, this list may be important to verify if any sequence of interest may have been mistakenly removed.

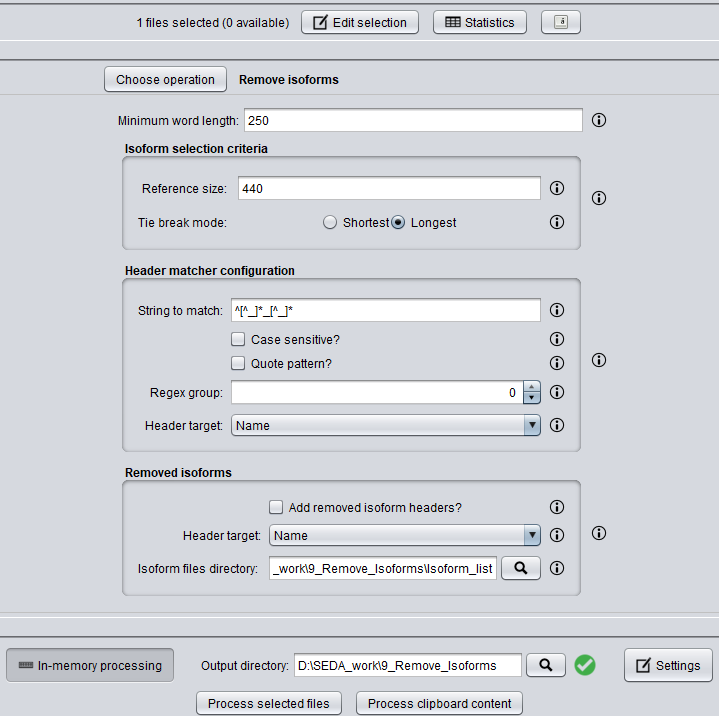

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/Remove_Isoforms file (in this case, the Isoform files directory path must be adjusted).

Once the operation is configured, choose an appropriate output directory (e.g. output/13_Remove_Isoforms) and run the operation. When finished, use this final output for further analysis.

Obtaining protein family members

This protocol shows how to retrieve all members of a given protein family such as, for instance, mucins. The main feature of mucin proteins is their extended region of tandemly repeated sequences (PTS repeats), which contain prolines (P) together with serines (S), and/or threonines (T), which generally occupy between 30% and 90% of the protein length, and that cannot be detected in homology searches due to their poor sequence conservation (https://doi.org/10.1371/journal.pone.0003041). Mucins also show signal peptides and other associated domains.

Step 1: Download input data

The input data for this protocol is available here: https://www.sing-group.org/seda/downloads/data/protocol-mucin.zip This zip file also contains the parameter configuration files to configure the SEDA operations.

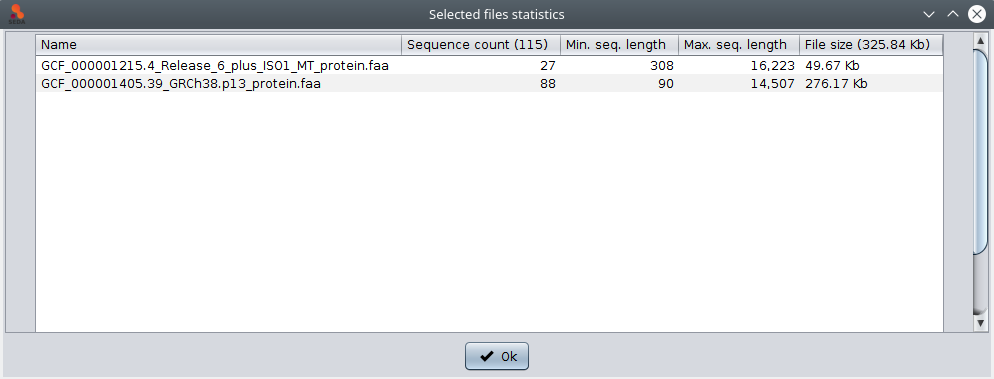

As the image below illustrates, the two input FASTA files for Homo sapiens (https://www.ncbi.nlm.nih.gov/assembly/GCF_000001405.39) and Drosophila melanogaster (https://www.ncbi.nlm.nih.gov/assembly/GCF_000001215.4) were downloaded from the NCBI assembly RefSeq database by selecting the Download assembly / Protein FASTA (.faa) option.

Step 2: Select the input FASTA files in SEDA

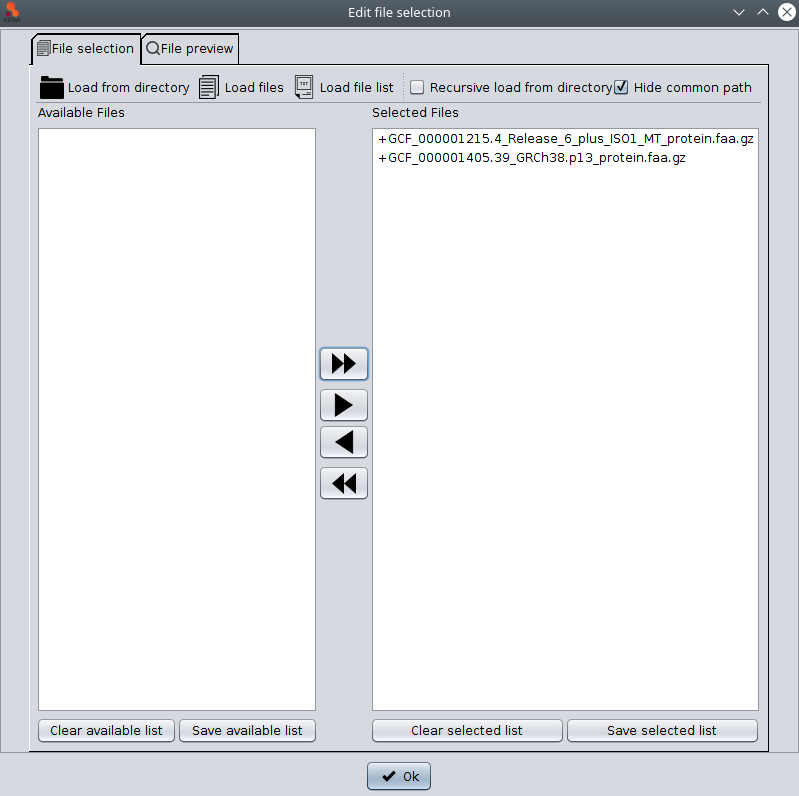

After downloading the data, click the Edit selection button of the SEDA GUI to load the two input FASTA files as the image below shows.

Step 3: Sequence filtering

Select sequences containing the words mucin or mucin- in their headers, using the Pattern filtering operation (Filtering group), and the ‘ mucin[ -]’ regular expression (please, note the blank space before mucin). The execution time of this operation is less than 1 second.

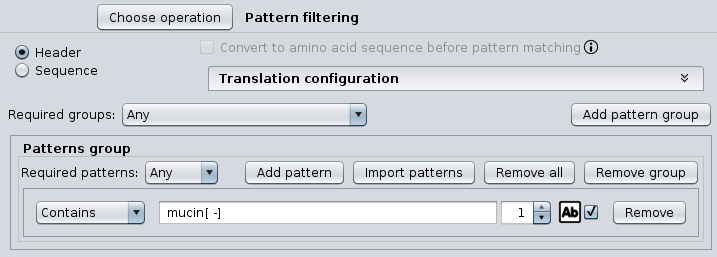

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/Step_1_Pattern_Filtering file.

Once the operation is configured, choose an appropriate output directory (e.g. output/Step_1_Pattern_Filtering) and run the operation. When finished, clear the current file selection and load these two output files.

Step 4: Annotate sequences

Annotate sequences using the PfamScan operation (Protein Annotation group). It takes about 6 minutes to annotate 101 protein sequences when using a delay between batch submissions that is twice the time needed to process the first batch of 30 sequences (Batch delay factor).

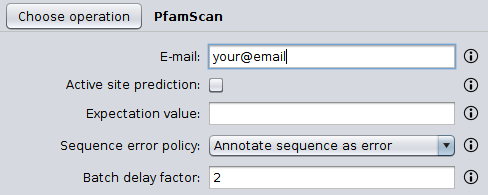

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/Step_2_PfamScan file (in this case, remember to set a valid e-mail account).

Once the operation is configured, choose an appropriate output directory (e.g. output/Step_2_PfamScan) and run the operation. When finished, clear the current file selection and load these two output files.

Step 5: Extract the sequence headers

Finally, with the annotated sequence files loaded in SEDA, extract the sequence headers. To do so, click the Statistics button to display the list of selected files.

Then, do right click on top of each file to see the sequence details and save this table, containing the protein families, into a CSV file using the Export to CSV button of the table.

When exporting this table into a CSV file, it is recommended to choose a custom format with the Quote fields option selected to guarantee that the file can be imported properly on a spreadsheet processing software.

Alternatively, it is possible to select the table contents with CTRL + A, copy them with CTRL + C, and paste them in a spreadsheet or text editor.

Protocol for a phylogenomics study

This protocol shows how to retrieve files and prepare datasets to be used in detailed phylogenomics studies. The given example concerns the use of mitochondrial genomes to pinpoint the most likely phylogenetic relationship between Rosaceae species, using a concatenated sequence approach (http://doi.org/10.1002/jez.b.21026).

Step 1: Download input data

The input data for this protocol is available here: https://www.sing-group.org/seda/downloads/data/protocol-phylogenomics.zip This zip file also contains the parameter configuration files to configure the SEDA operations.

The input data for this protocol can be also obtained at https://www.ncbi.nlm.nih.gov/nucleotide/, by querying Rosaceae [Organisms] AND complete genome mitochondrion on the search field. After, download each mitochondrial genome individually, selecting Coding sequences in the Send to: option, and choosing the FASTA Nucleotide file type. Please note that some species have more than one mitochondrial genome data available, and some of the genomes may present an UNVERIFIED prefix. To avoid redundant or misleading data, the use of the most recent genome available and the exclusion of unverified datasets are highly advisable.

The download options are presented in the image below.

Step 2: Rename headers

After downloading the FASTA files, load them into SEDA by clicking the Edit selection button of the available GUI.

The BLAST: two-way ortholog identification operation that is essential to prepare datasets to be used in detailed phylogenomics studies, may fail if sequence headers are too long or special characters are used. Therefore, in the following steps, headers will be renamed to guarantee that the BLAST: two-way ortholog identification operation will run smoothly.

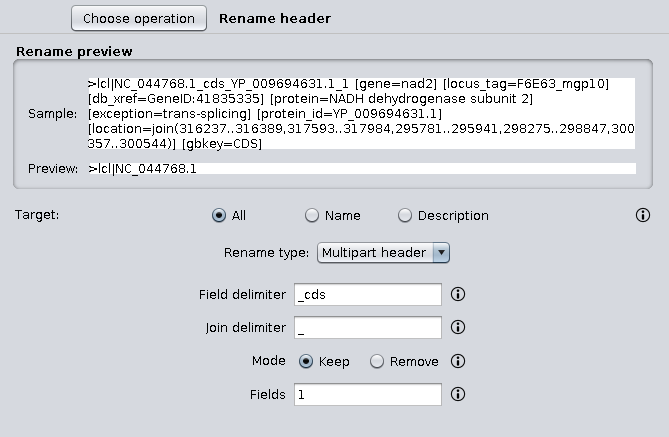

First, in order to keep the text up to the accession number of the annotated mitochondrion genome only, use SEDA’s Rename header operation as shown below (Rename type: Multipart header; Field delimiter: “_cds”; Join delimiter: “_”; Mode: Keep; Fields: 1). The settings can be introduced manually or loaded from the configuration/Rename_Headers_1 file.

Once the operation is configured, choose an appropriate output directory (e.g. output/Rosaceae/2_Header_Rename_1) and run the operation. When finished, clear the current file selection and load the output files.

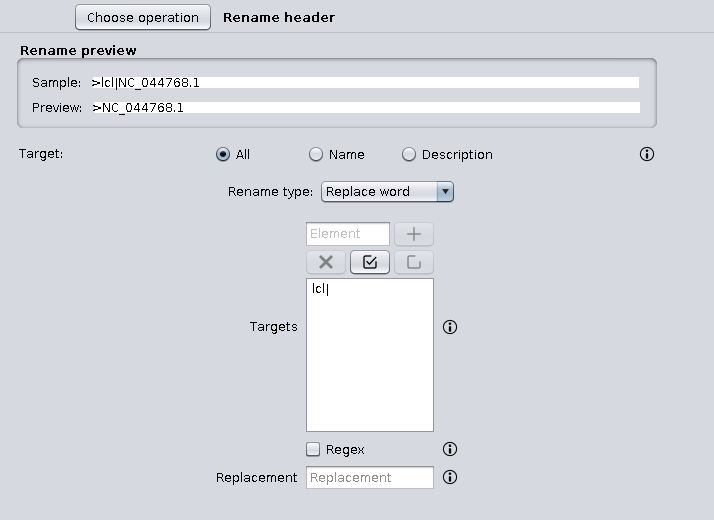

Then, replace “lcl|” by nothing using again SEDA’s Rename header operation and the Replace word option, as shown in the following image. This can be done by choosing All as Target and by writing “lcl|” in the Element text box and pressing the “+” button. The settings can be introduced manually or loaded from the configuration/Rename_Headers_2 file.

Once the operation is configured, choose an appropriate output directory (e.g. output/Rosaceae/2_Header_Rename_2) and run the operation. When finished, clear the current file selection and load the output files.

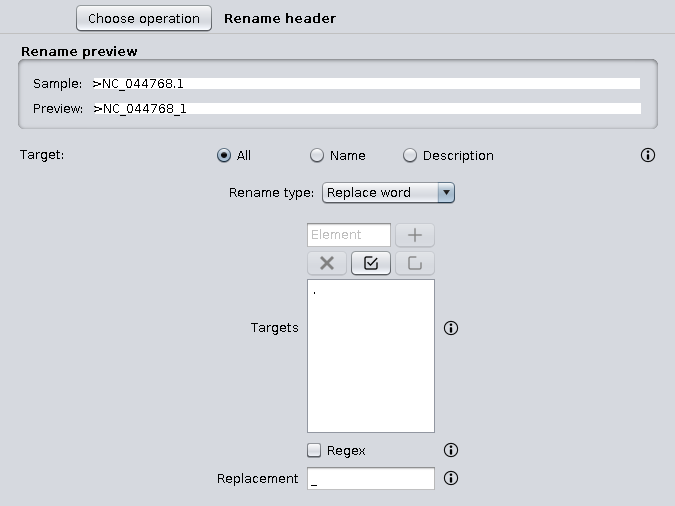

Moreover, replace “.” by “_” using SEDA’s Rename header operation and the Replace word option as presented below. This can be done by choosing All as Target, by writing “.” in the Element text box and pressing the “+” button, as well as writing “_” in the Replacement box. The settings can be introduced manually or loaded from the configuration/Rename_Headers_3 file.

Once the operation is configured, choose an appropriate output directory (e.g. output/Rosaceae/2_Header_Rename_3) and run the operation. When finished, clear the current file selection and load the output files.

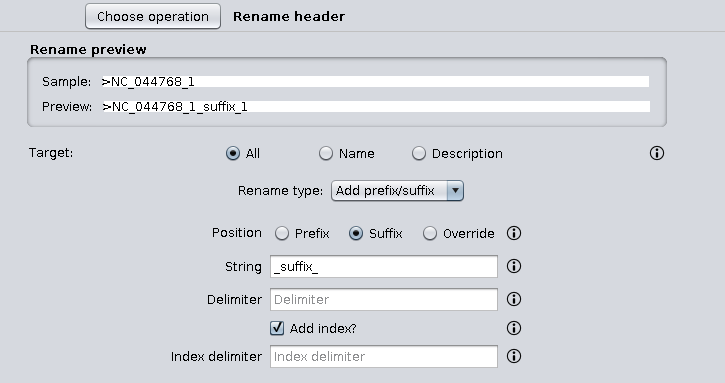

Since within each FASTA file all sequence names are now identical, add the string “_suffix_” and an index using the Rename header operation and the Add prefix/suffix option as shown below. This can be done by choosing All as Target, by choosing Add prefix/suffix as the Rename type, choosing Suffix as Position, “_suffix_” as String, and by selecting the Add index? button. The settings can be introduced manually or loaded from the configuration/Rename_Headers_4 file.

Once again, choose an appropriate output directory (e.g. output/Rosaceae/2_Header_Rename_4) and run the operation. When finished, clear the current file selection and load the output files.

Step 3: Identification of mitochondrial gene orthologs

This step will be performed using the BLAST: two-way ortholog identification operation. In this example, SEDA was used as a Docker image, and as such the Docker image execution mode was automatically selected.

The DB Configuration section can be left unaltered, and the Query configuration should have the Report exact orthologs option selected, as well as tblastx as BLAST type. The option “From selected file” is used to choose the FASTA file to be used as query, in this case the Prunus avium mitochondrial genome (NC_044768.1). The remaining parameters are not altered in this protocol.

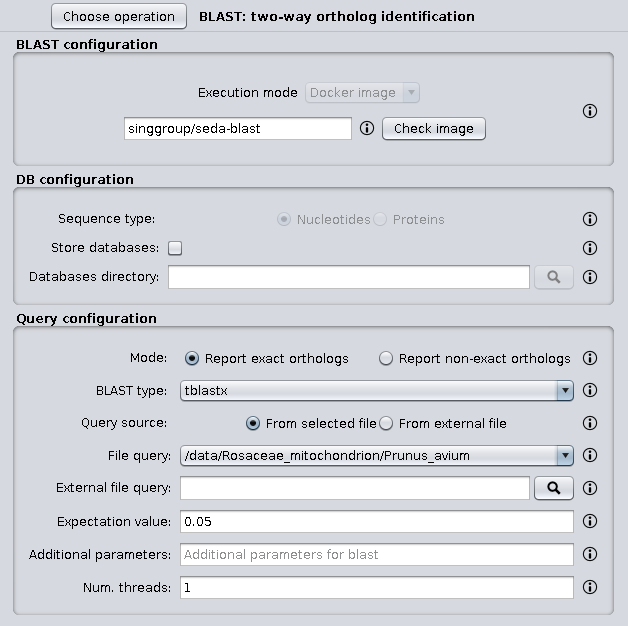

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/BLAST_two_way file (in this case, the External file query path must be adjusted).

Once the operation is configured, choose an appropriate output directory for the files of both databases (e.g. output/Rosaceae/3_Blast_Results) and run the operation. When finished, clear the current file selection and load the output files.

Step 4: Sequence filtering

Although the sequences used in this protocol are tagged as coding in the download interface, it is not uncommon to find some without a valid start codon (ATG, ACG, GTG, GGG and ATA; see table 2 in http://doi.org/10.1371/journal.pone.0131508), with in-frame stop codons, with a remarkable size difference relative to a given reference, or non-multiple of three. Such features are likely derived from annotation errors and should not be considered in further analyses.

To remove these sequences, select the Filtering operation and check ATG, ACG, GTG, GGG and ATA as the only valid start codons, as well as the Remove sequences with a non-multiple of three length and Remove sequences with in-frame stop codons options. Furthermore, change the Minimum number of sequences to 0, check the Remove by sequence length difference and select a Maximum length difference (%) of 15% relative to the Reference sequence index 1 (Should be the relevant Prunus sequence in each file because of the BLAST: two-way ortholog identification operation).

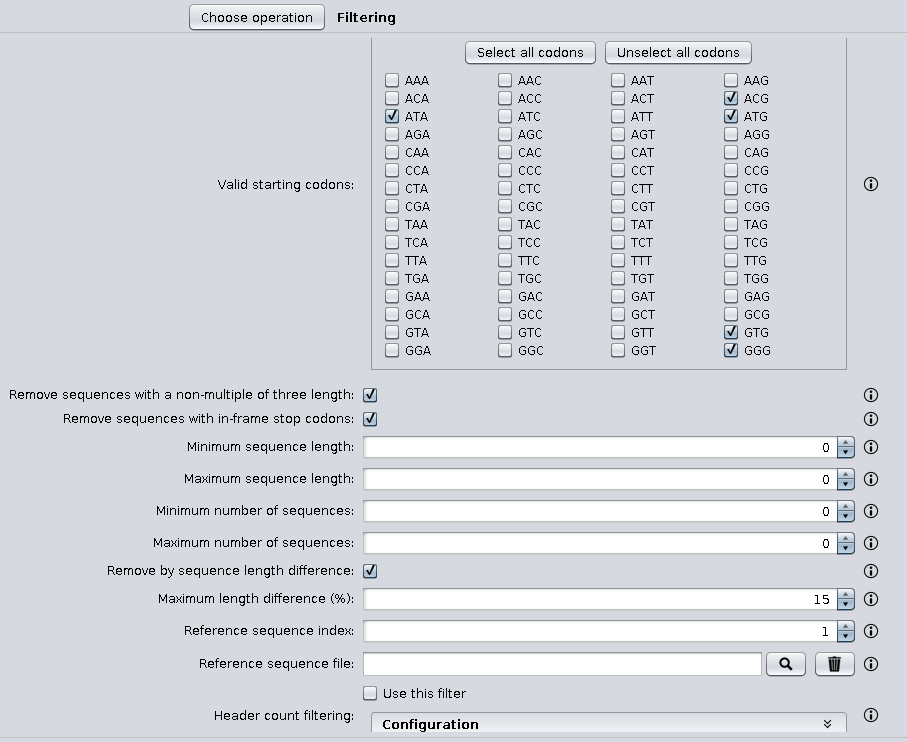

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/Filtering_1 file.

Once the operation is configured, choose an appropriate output directory (e.g. output/Rosaceae/4_Size_Difference) and run the operation. When finished, clear the current file selection and load the output file.

Files with less than five sequences (i.e. genes that do not have orthologous sequences in all the species analysed) should be removed to obtain a compatible concatenated sequence dataset.

To achieve this purpose, uncheck all of the previous options of the Filtering operation. After, select 5 as the Minimum number of sequences and the Maximum number of sequences to include only the datasets relevant for further analyses (those with exactly five sequences).

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/Filtering_2 file.

Once the operation is configured, choose an appropriate output directory (e.g. output/Rosaceae/4_Sequence_Number) and run the operation. When finished, clear the current file selection and load the output files.

Step 5: Remove Suffixes

The suffixes that were previously introduced to make sure that the BLAST: two-way ortholog identification operation ran smoothly, must now be removed to make sure that the sequences to be concatenated have the same name in the different files. This can be achieved by using the Rename header operation and the Multipart header option. Choose as field delimiter “_suffix”, as join delimiter “_”, Mode as Keep option, and 1 as Fields, as shown below. The settings can be introduced manually or loaded from the configuration/Remove_Suffixes file.

Once the operation is configured, choose an appropriate output directory (e.g. output/Rosaceae/5_Remove_Suffixes) and run the operation. When finished, clear the current file selection and load the output files.

Step 6: Sequence alignment

Orthologous sequences may present distinct sizes in different species. Therefore, orthologous sequences must be aligned before being concatenated.

This step can be performed using the Clustal Omega Alignment operation, using the default settings.

Note

The Num. threads can be altered to higher values according to the hardware capacity, to decrease the execution time of the operation.

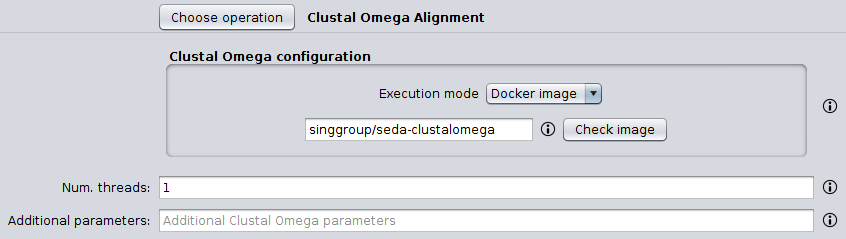

The image below shows the operation configuration.

Once the operation is configured, choose an appropriate output directory (e.g. output/Rosaceae/6_Aligned_Sequences) and run the operation. When finished, clear the current file selection and load the output file.

Step 7: Concatenate sequences

To obtain a single aligned multi-gene sequence dataset it is necessary to concatenate all of the aligned gene sequences available in the distinct files.

This can be done using the Concatenate sequences operation by selecting an adequate name for the output file (e.g. Concatenated_file), checking Sequence name under the Sequence matching mode parameter (this will concatenate sequences that share the same header, representative of the same species), and choosing the Remove line breaks option under Reformat output file.

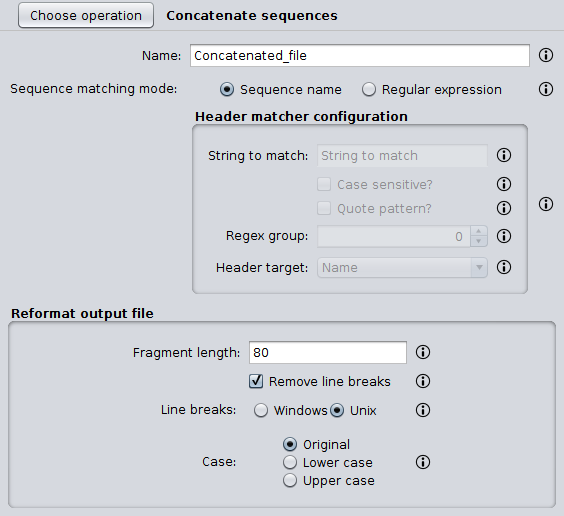

The image below shows the operation configuration, which can be introduced manually or loaded from the configuration/Concatenate_sequences file.

Once the operation is configured, choose an appropriate output directory (e.g. output/Rosaceae/7_Concatenated) and run the operation. When finished, use this final output for further analysis.
